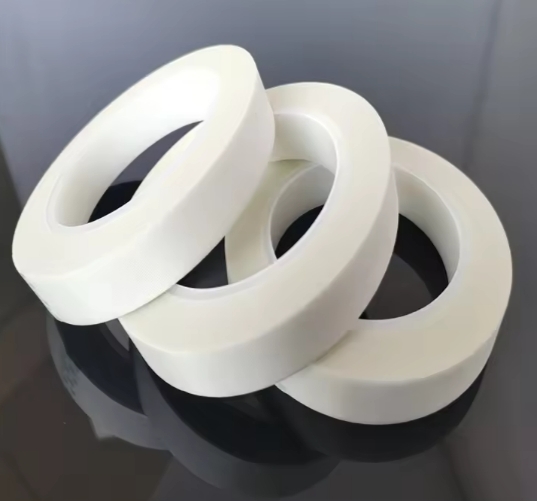

Product Description:
The High-performance Adhesive Insulation Tape is specifically engineered to withstand demanding industrial environments. It utilizes a high-density glass fiber cloth as the base backing, providing the product with unparalleled robustness and heat resistance. On this foundation, we coat a specially formulated, high-performance pressure-sensitive acrylic adhesive that ensures instant tack and long-term holding power. Finally, an easy-release silicone-coated liner offers a user-friendly application experience and reliably protects the adhesive layer until the moment of use. It is more than just a roll of tape; it is a reliable safeguard for the safety and stable operation of your equipment.
Advantages:
- Exceptional Durability: The backing material combines softness and easy tearability with excellent tear resistance, high mechanical strength (Tensile Strength ≥200N/10mm), and outstanding temperature resistance, reliably operating within a service temperature range of -30℃ to 150℃.
- Powerful Adhesion: The high-quality acrylic adhesive delivers robust initial tack and long-lasting holding power, with an adhesion to steel of ≥4N/10mm, ensuring a secure and reliable bond.
- Long Service Life: It offers a 12-month shelf life under standard storage conditions (21°C / 50% RH, out of direct sunlight), and its material properties provide excellent resistance to aging.
Technical Parameters:
| Parameter | Value |
| Backing Material | E-fiber Glass Cloth |
| Backing Thickness | 100 Micron |
| Total Thickness | 160 Micron |
| Adhesion to Steel | ≥4N/10mm |
| Tensile Strength | ≥200N/10mm |
| Elongation | ≥3% |
| Service Temp. | -30°C ~ +150°C |
| Breakdown Voltage F-Class | ≥1.8kV |
| Adhesive Type F-Class | Acrylic Pressure-Sensitive |
Applications:
- Reliable Electrical Insulation & Structural Fixation: With its exceptional tensile strength and adhesion, this tape is widely used for wrapping transformer coil leads and securing motor and transformer windings, providing reliable and durable insulation protection.
- Battery Pack Safety & Encapsulation Protection: The glass cloth backing offers excellent explosion-resistant and leak-proof properties, making it an ideal insulation wrapping material for high-energy lithium-ion battery packs, significantly enhancing their safety and protection level.
- High-Temperature Shielding & Protection: Suitable for various high-temperature protection scenarios, such as surface masking during high-temperature sandblasting operations, and other industrial applications requiring long-term heat-resistant shielding.
Important Notes:
1. Storage & Shelf Life: 12 months when stored in a cool, dry place at 21°C (70°F) and 50% relative humidity, away from direct sunlight.
2. Surface Preparation: As with all pressure-sensitive tapes, the application surface must be thoroughly clean, dry, and free from contaminants such as grease or oil.
3. Product Use: Users are strongly advised to conduct thorough testing and trial applications to verify the product's suitability for their specific purpose and techniques.
